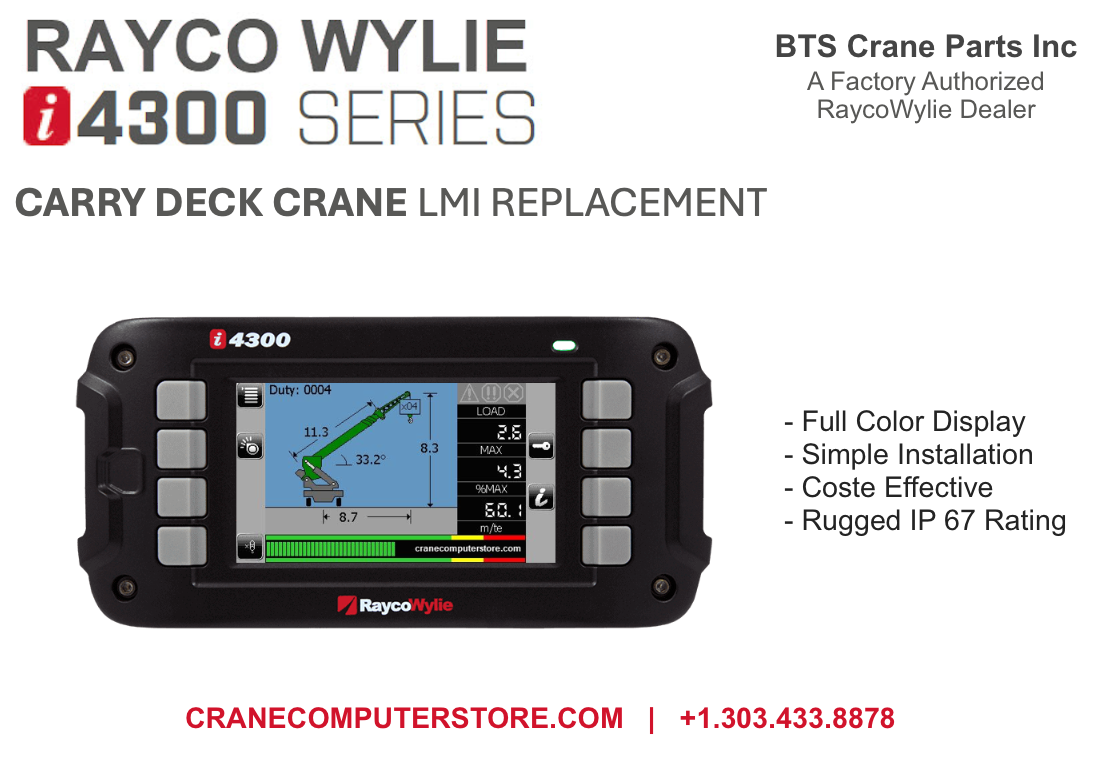

This carry deck crane load moment indicator LMI computer replacement is perfectly suited to Boderson, Shuttlelift, and Grove Yardboy with older Greer Microguard or OEM LMI computers. The Rayco Wylie i4300 is specifically designed for carry deck cranes, providing full safety functionality at a more affordable price. This carry deck LMI replacement will bring your machine up to date with a full color display, state of the art reliable sensors, and rugged long lasting trouble-free construction. The RaycoWylie i4300 crane system supports multiple sensors including boom angle / length cable reel sensor, load pressure sensors, boom tip anti two block, and winds speed. Available for single reel telescopic cranes (hoist or total moment sensing) all sensors and the display itself are a minimum of IP67 water resistance rating.
Features
Features
- Full load chart capabilities
- Quick and easy installation
- One screen display of load, hoist, parts of line, radius, boom length, boom angle and % of maximum capacity
- Full lockout capabilities if installed on your crane
- Operator adjustable low, high angle, length, height and radius limits
- Audible and visual alarms
- Diagnostic menu and continuous error detection and recording
Technical Data
Technical Data
- Display Size 4.3 inch diagonal 3.66" x 7.80" x 1.65"
- Screen Resolution 480 x 272
- Operating Temperature -4 to 158 degrees Farenheit
- Extended Temperature -40 to 158 degrees Farenheit
- Supply Voltage 11 to 36 volts DC
- Display Rating IP67
- Accuracy Rating SAE J159
- USB Upload Cabability
- Multi Language: English, Spanish, French
A Smarter, Safer Upgrade for Carry Deck Cranes
A Smarter, Safer Upgrade for Carry Deck Cranes
The Rayco Wylie i4300 system is the ideal Load Moment Indicator (LMI) replacement for carry deck cranes, combining advanced technology with user-friendly design to deliver superior safety and performance. Built to meet the demands of modern lifting environments, the i4300 provides precise real-time information on load, boom angle, and radius—ensuring operators always know exactly where they stand within the crane’s rated capacity. Its high-resolution color display and intuitive interface make it easy to interpret critical data at a glance, while the system’s advanced sensors help prevent overloads and unsafe lifting conditions. Whether replacing an outdated PAT or Greer system, the i4300 offers plug-and-play compatibility, seamless calibration, and a straightforward installation process that minimizes downtime.
Beyond safety and accuracy, the i4300 system enhances productivity and extends the operational life of carry deck cranes. Its modular design allows for flexible configuration, enabling integration with a variety of sensors, anti-two-block devices, and wireless components. This adaptability makes it a long-term investment that keeps cranes compliant with safety standards and ready for future upgrades. With the Rayco Wylie i4300, operators gain more than just an LMI—they gain a comprehensive crane-monitoring solution that improves efficiency, increases operator confidence, and delivers peace of mind on every lift.
Recent Shuttlelift CD5540F LMI Replacement
Recent Shuttlelift CD5540F LMI Replacement
- New display with full load chart capabilities
- New Pressure Transducers for Load
- Anti Two Block on main line
- Mini cable reel for boom extention
- Full lockout capabilities
Project Overview
This customer provides commercial and residential contracting services along the great lakes. They had a Shuttlelift utilized for smaller projects and for work in their yard. They wanted a compact option for the smaller crane. We were able to work with them on a smaller system using a mini cable reel and pressure transducers. The small unobtrusive system will give the years of safe use of this smaller crane.
Carry Deck Crane Computer Kit
Carry Deck Crane Computer Kit
Individual Component Specification Sheets
Individual Component Specification Sheets
A Factory Authorized RaycoWylie Dealer
A Factory Authorized RaycoWylie Dealer
The i4300 is a computerized crane monitoring system, designed as an operator aid. It comprises sensors fitted to the crane and a display located in the cabin of the crane. This version measures the boom cylinder pressure or the tension in the hoist rope, the boom angle and length, and it indicates safe or critical conditions, while performing an authorized lift of loads.
All the sensors are linked through a single CAN Bus (Controlled Area Network). The pressure sensors or a dynamometer provide electrical signals that are proportional to ther load lifted. An inclinometer provides a signal that is proportional to the boom angle and a reeling drum provides a signal that is proportional to the boom extension. The radius and the load are calculated from these signals with the dimensional crane data preprogrammed in the i4300 system.
During operation the load lifted by the crane is calculated from the measured boom cylinder pressure and is automatically compared with corresponding data related to the maximum permissible crane loading.
The actual load is expressed as a percentage of the permitted load (% SWL). If this percentage exceeds a preset value, alarms and safety functions are activated. The values of the hook load, the permissible load, the main boom angle and the radius are displayed in a digital form on a graphic liquid crystal display (LCD).
The required crane duty charts are stored in a non-volatile memory and can only be modified with the approval of the crane manufacturer. The calculated crane parameters and calibration data are stored in an additional non-volatile memory. The calibration of the system is performed only with the use of known loads, boom angles, and other pre-determined data.
All the sensors are linked through a single CAN Bus (Controlled Area Network). The pressure sensors or a dynamometer provide electrical signals that are proportional to ther load lifted. An inclinometer provides a signal that is proportional to the boom angle and a reeling drum provides a signal that is proportional to the boom extension. The radius and the load are calculated from these signals with the dimensional crane data preprogrammed in the i4300 system.
During operation the load lifted by the crane is calculated from the measured boom cylinder pressure and is automatically compared with corresponding data related to the maximum permissible crane loading.
The actual load is expressed as a percentage of the permitted load (% SWL). If this percentage exceeds a preset value, alarms and safety functions are activated. The values of the hook load, the permissible load, the main boom angle and the radius are displayed in a digital form on a graphic liquid crystal display (LCD).
The required crane duty charts are stored in a non-volatile memory and can only be modified with the approval of the crane manufacturer. The calculated crane parameters and calibration data are stored in an additional non-volatile memory. The calibration of the system is performed only with the use of known loads, boom angles, and other pre-determined data.

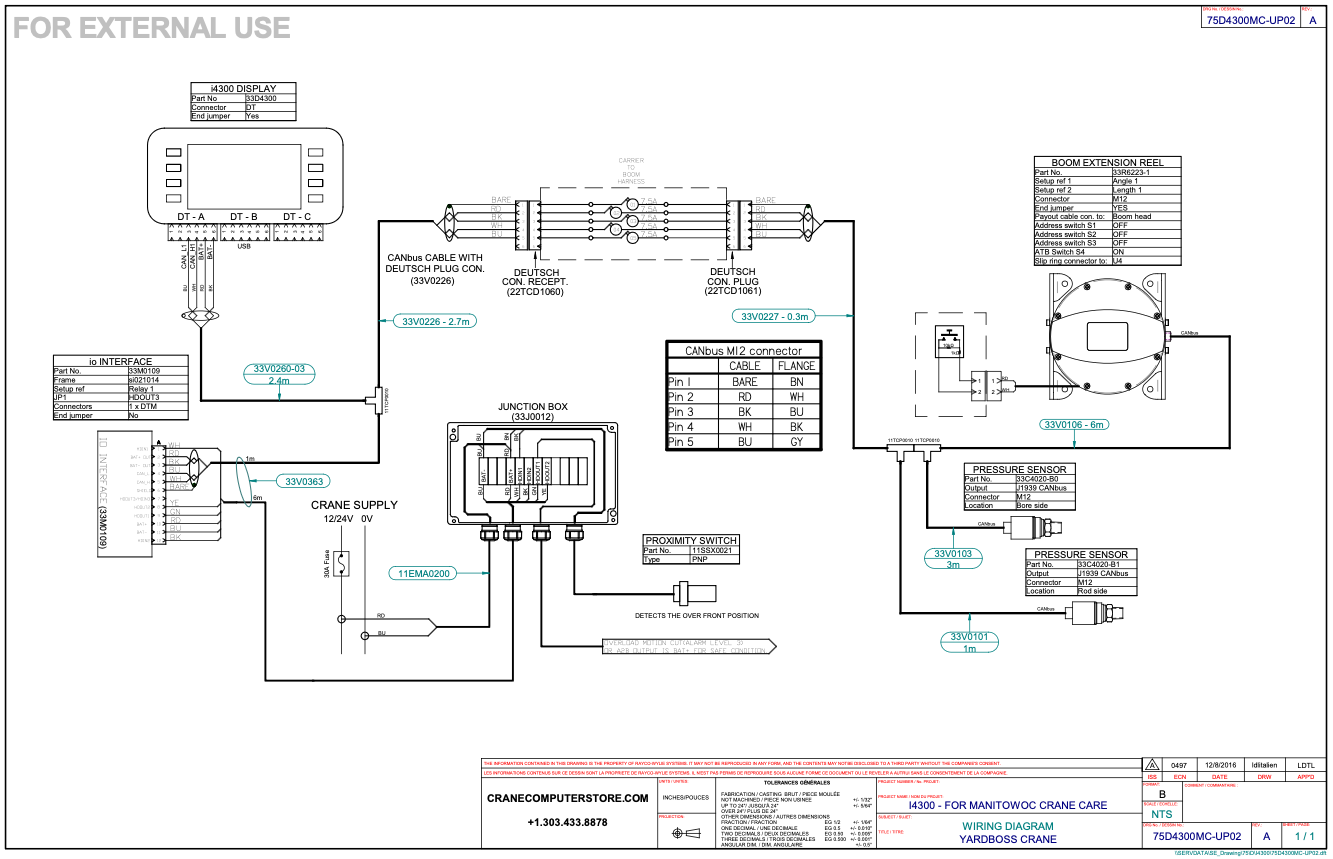

Yardboss Carry Deck Simple LMI Replacement
Yardboss Carry Deck Simple LMI Replacement
Plug & Play
Plug & Play
Versatile Power in Compact Form
Versatile Power in Compact Form
Carry deck cranes such as the Broderson, Shuttlelift, or Grove Yard Boy offer unmatched versatility and maneuverability, making them a go-to choice for industrial plants, construction sites, and maintenance operations. Their compact design allows them to navigate tight spaces and confined job sites where larger cranes can’t operate effectively. Equipped with a rotating boom and a flat deck for material transport, these cranes can lift, carry, and place loads with incredible efficiency—all from a single position. This combination of mobility and lifting power makes carry deck cranes indispensable for projects that demand flexibility, speed, and precision in limited work areas.
Efficiency That Drives Productivity
Efficiency That Drives Productivity
Beyond their compact footprint, carry deck cranes deliver significant operational advantages that improve productivity and reduce costs. They are quick to set up, easy to operate, and capable of handling multiple tasks—such as loading materials, transporting equipment, and positioning components—without the need for additional machinery. Their 360-degree boom rotation provides exceptional reach, while their low-profile design ensures stability and visibility for the operator. Whether used in refineries, factories, or construction zones, carry deck cranes maximize uptime and deliver reliable performance day after day, making them one of the most efficient and cost-effective lifting solutions in the industry.
